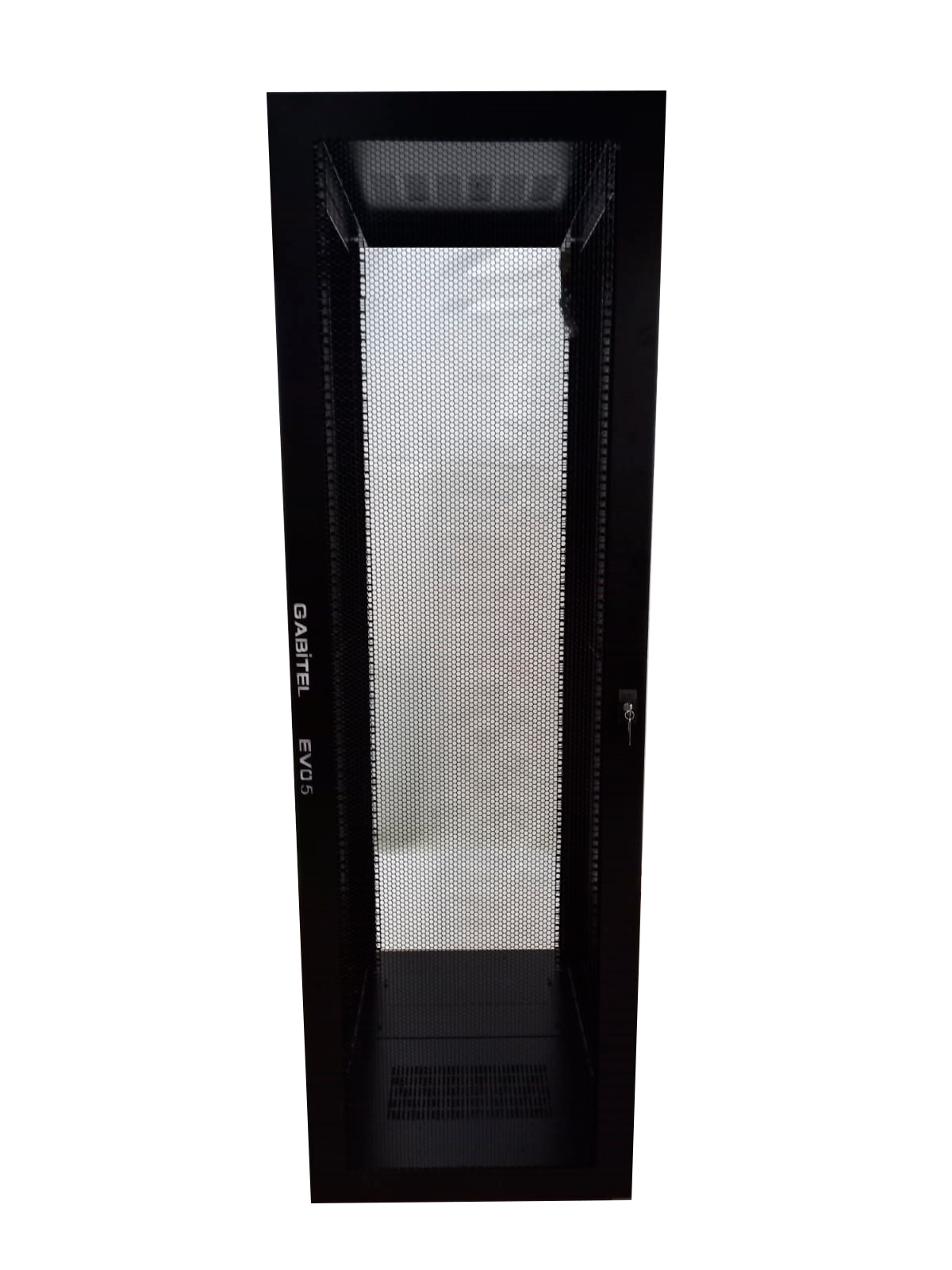

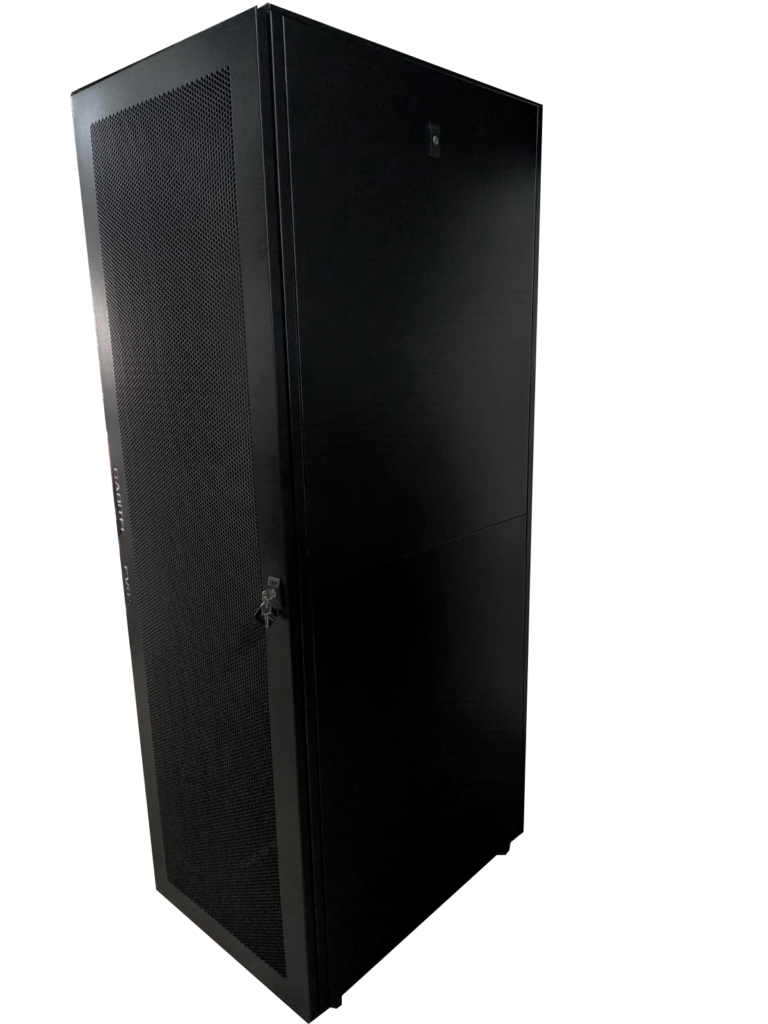

Rack EVO 5 (19” – 23” – W8)

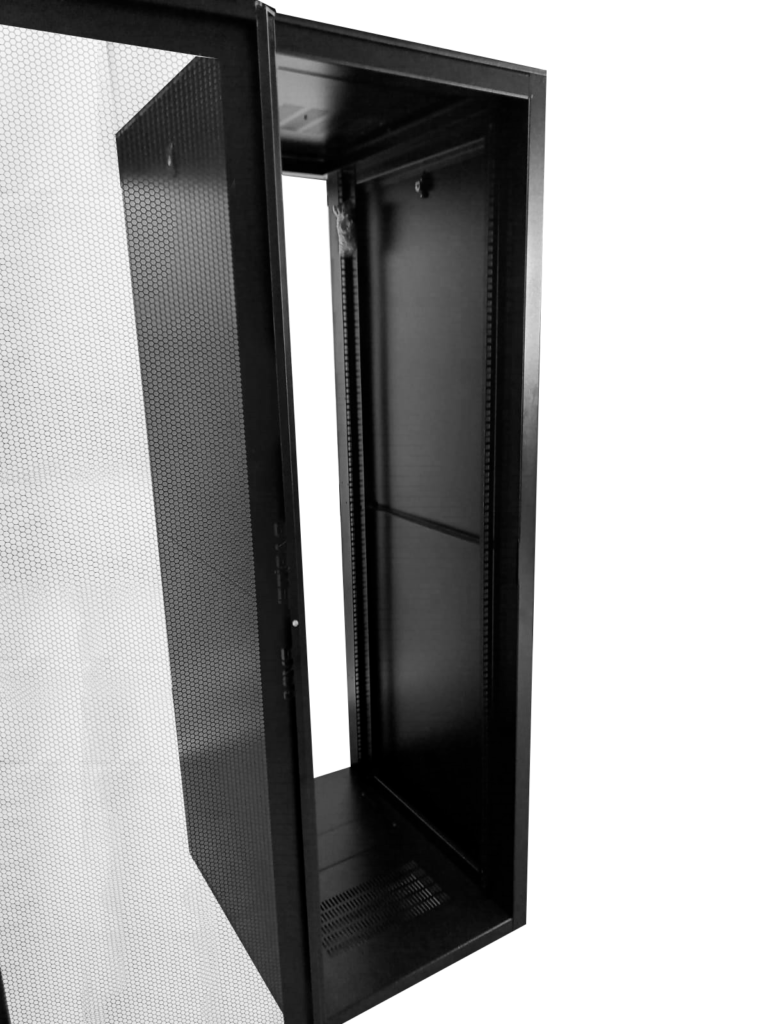

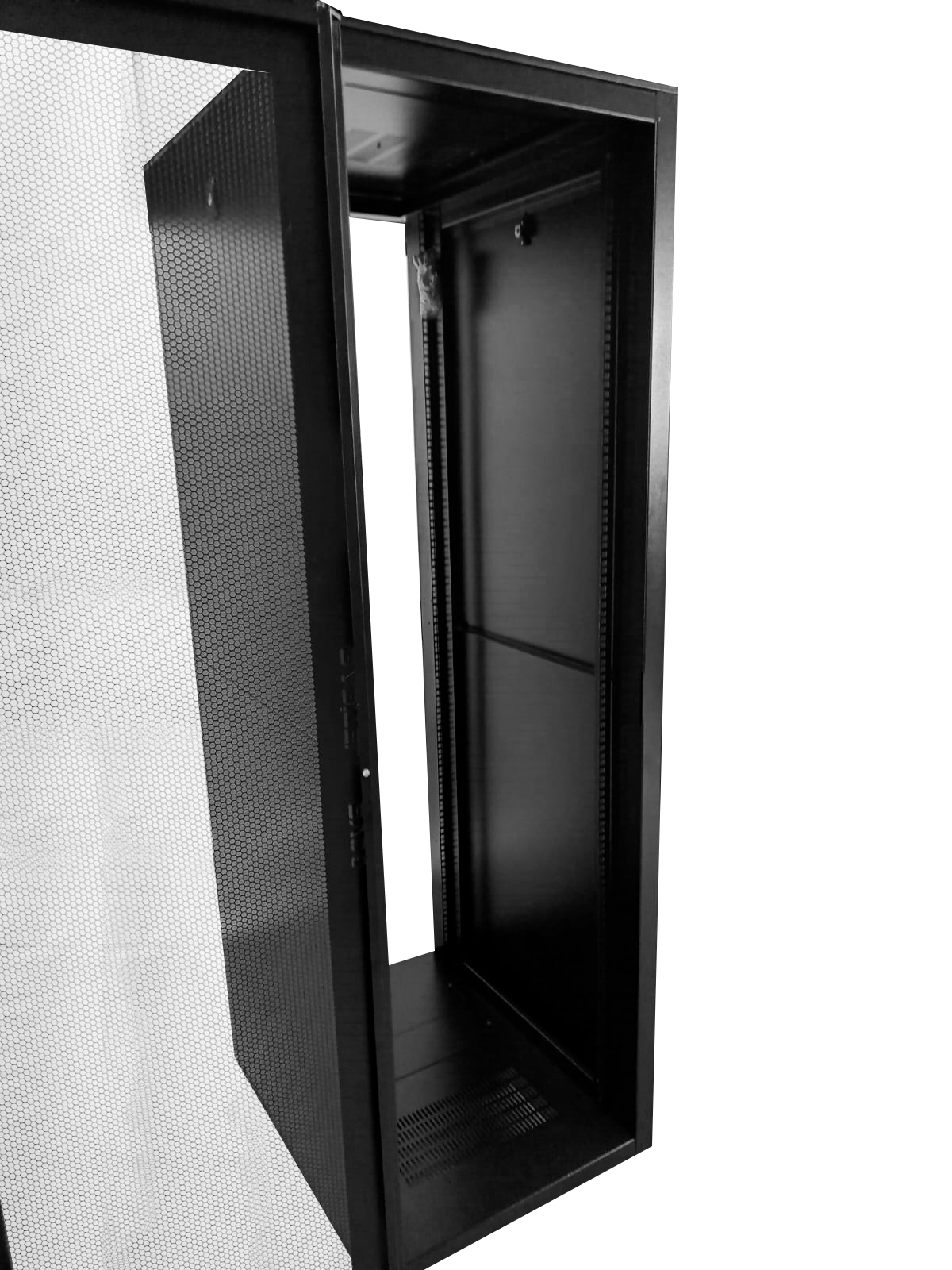

Los Racks EVO 5 poseen una estructura totalmente soldada que permiten obtener una alta capacidad de carga y máxima rigidez. La línea EVO 5 se adapta a todo tipo de entorno IT y densidad de cableado, con versiones de 600, 700 y 800mm de ancho, hasta 1200mm de profundidad y alturas desde 15 hasta 48 unidades en sus versiones estándar.
Partes componentes de la presentación estándar:
- Versión Estandar
- Terminación: Negro o Beige

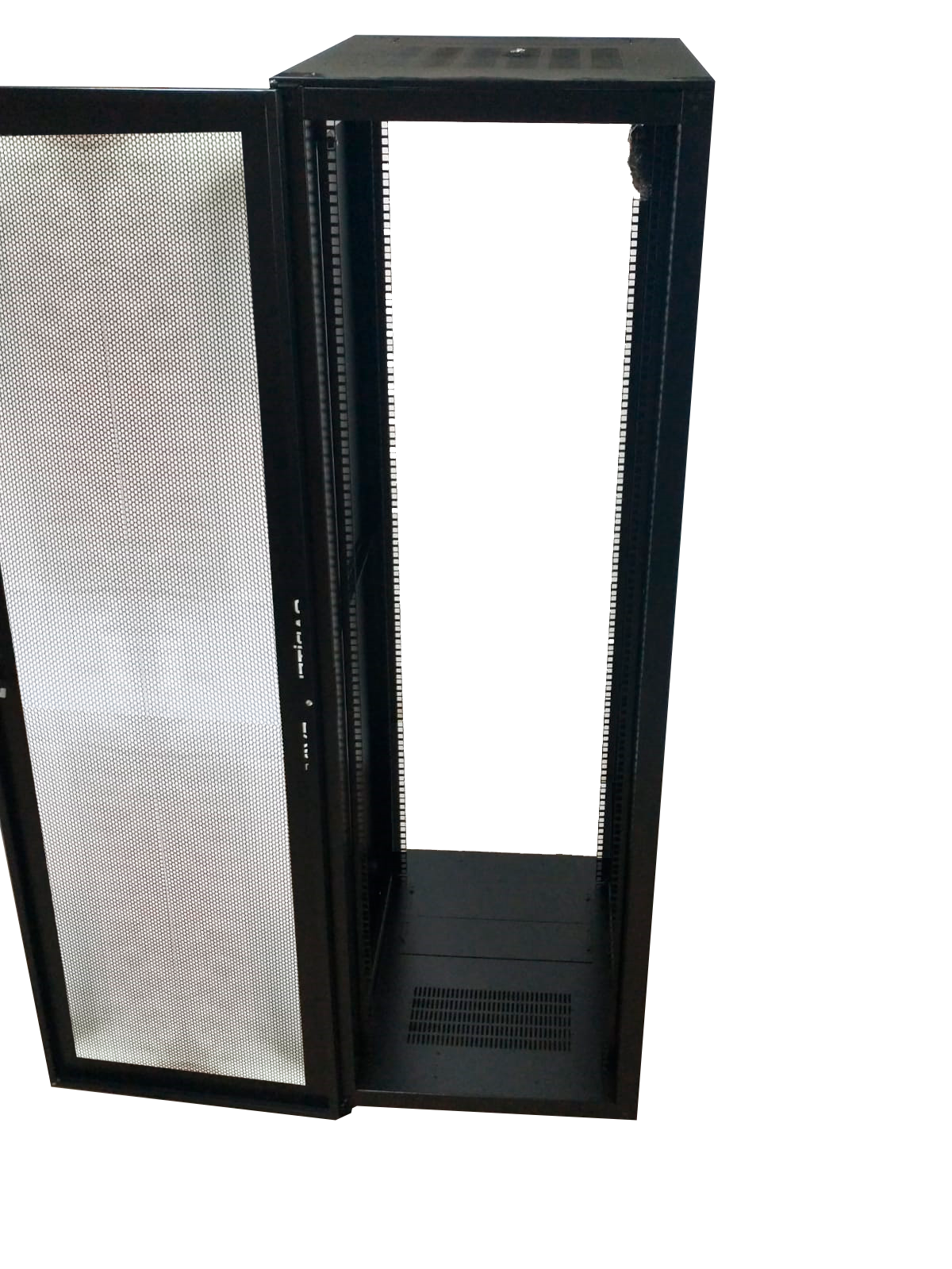

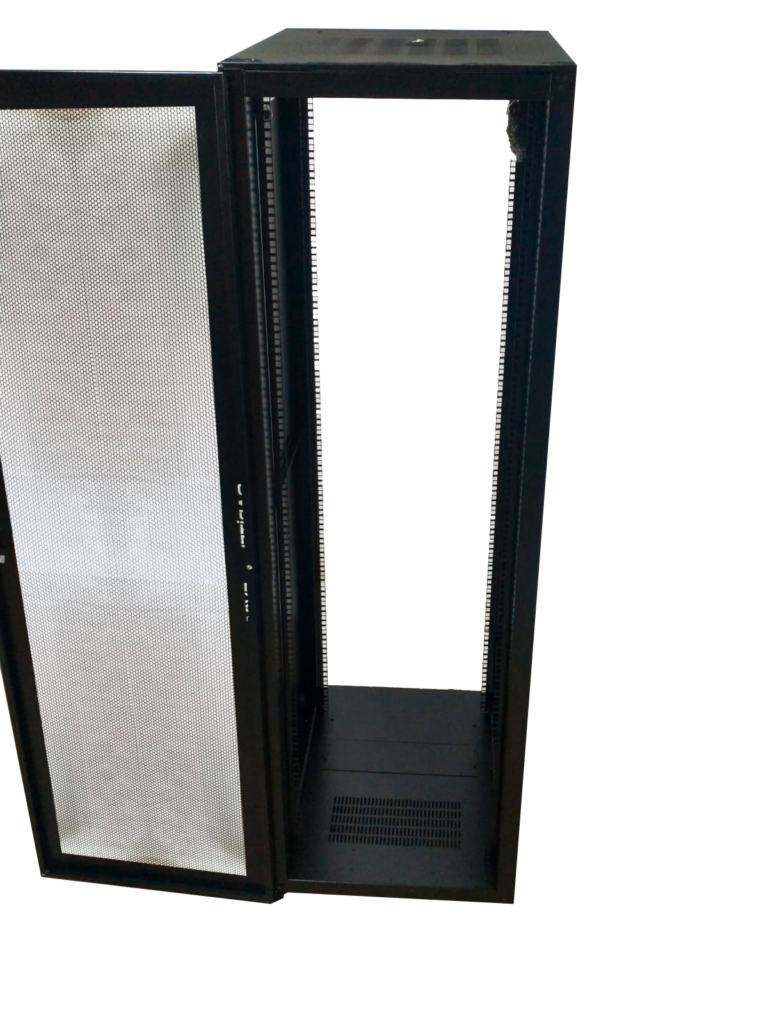

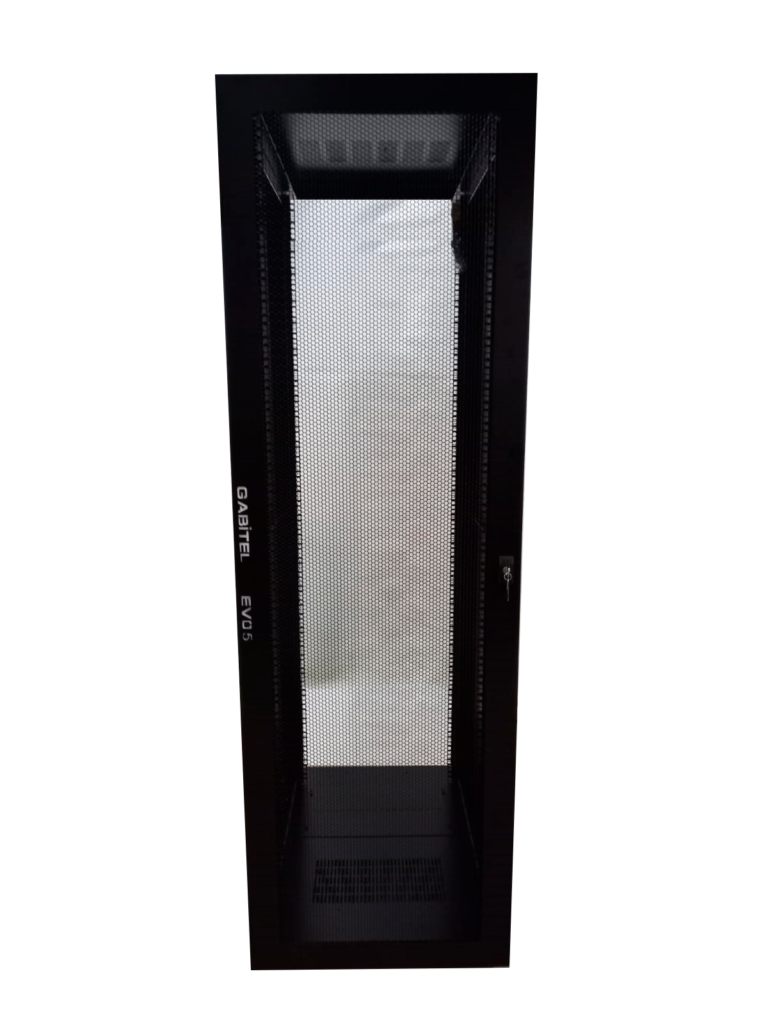

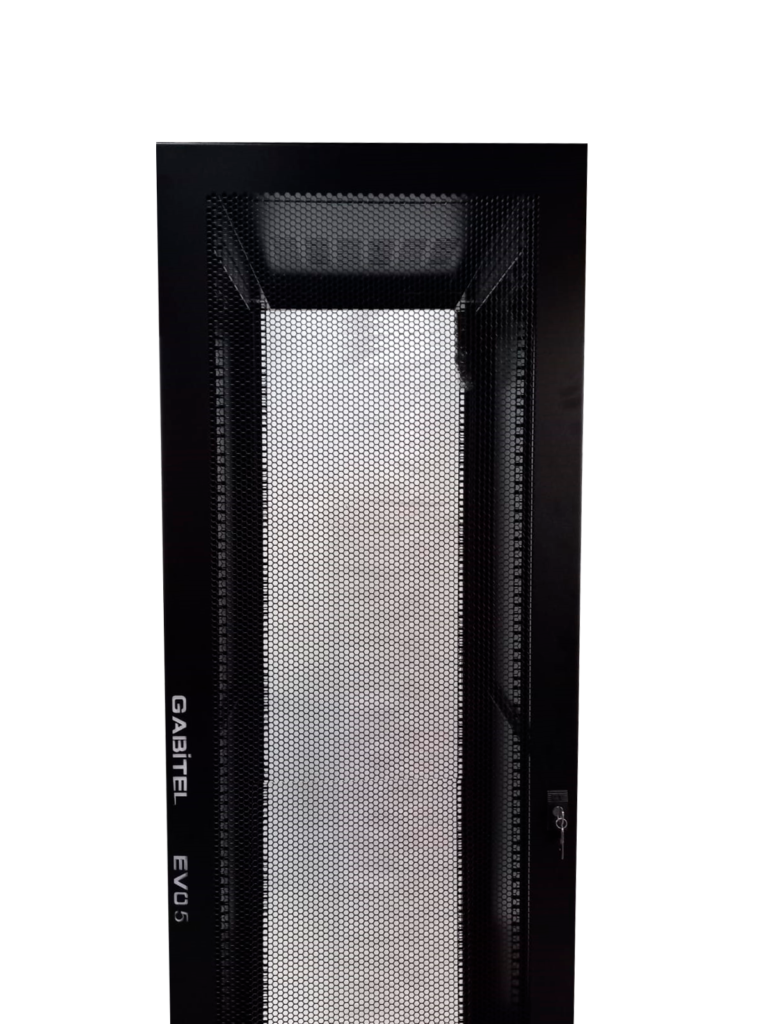

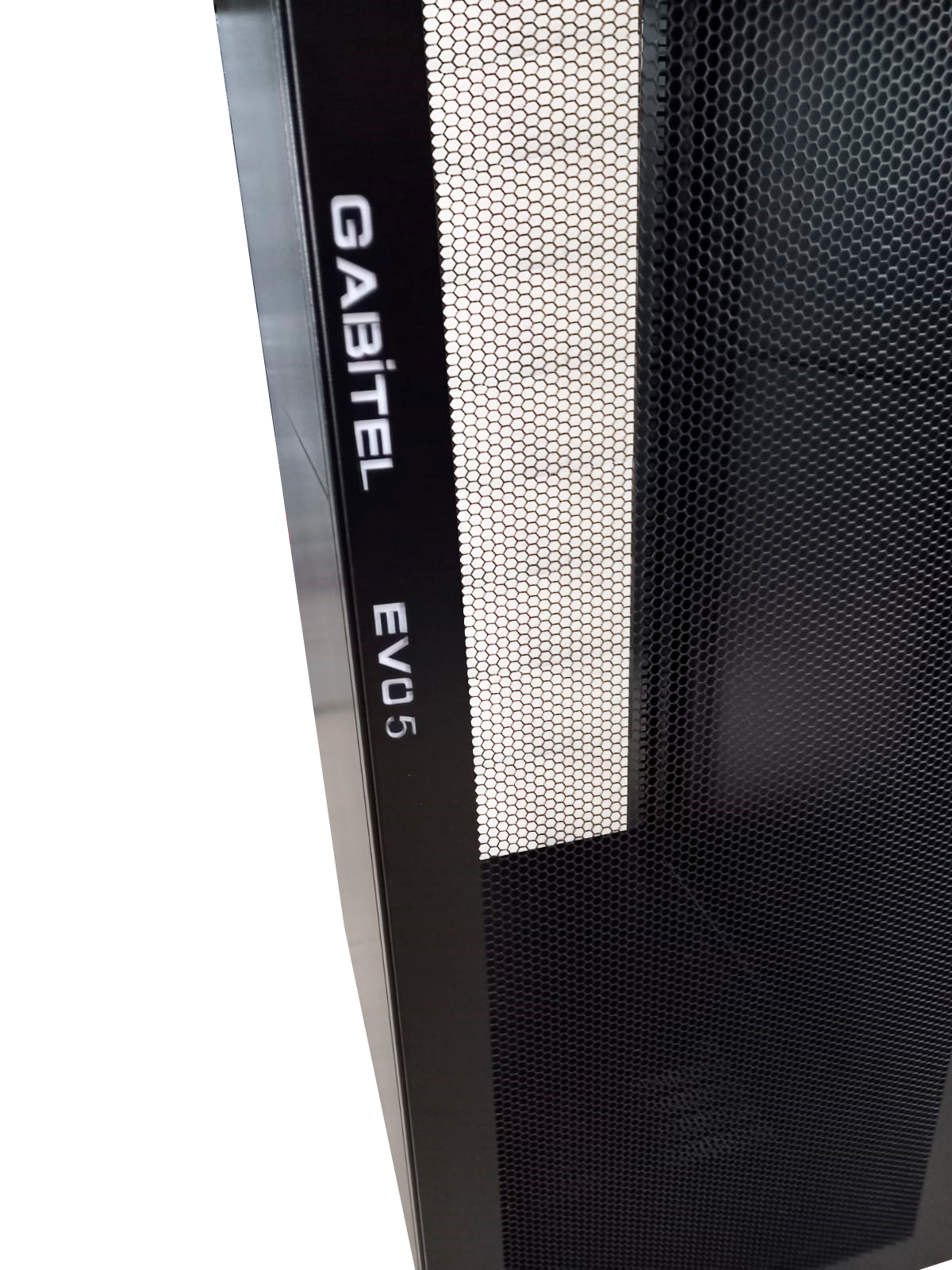

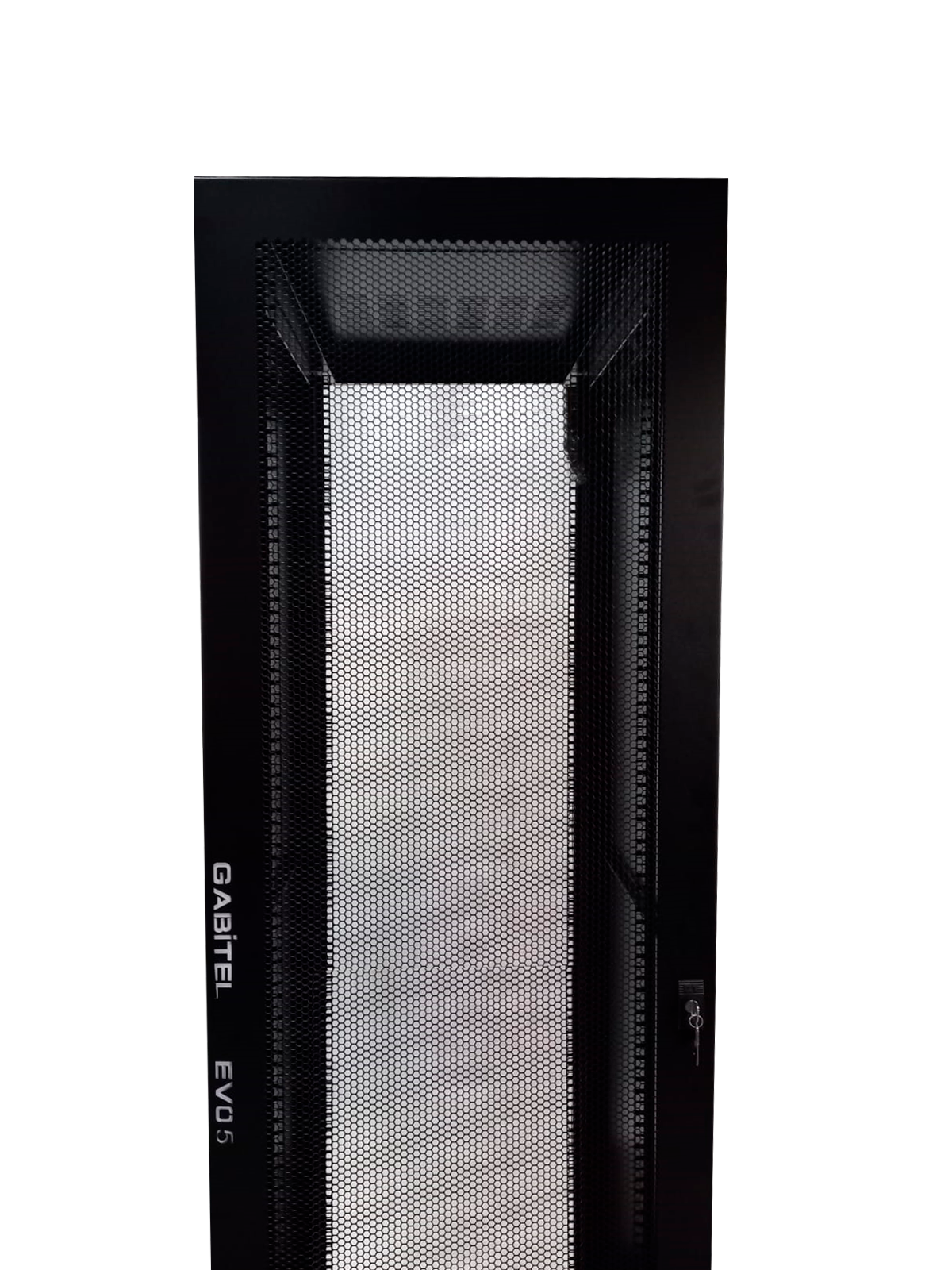

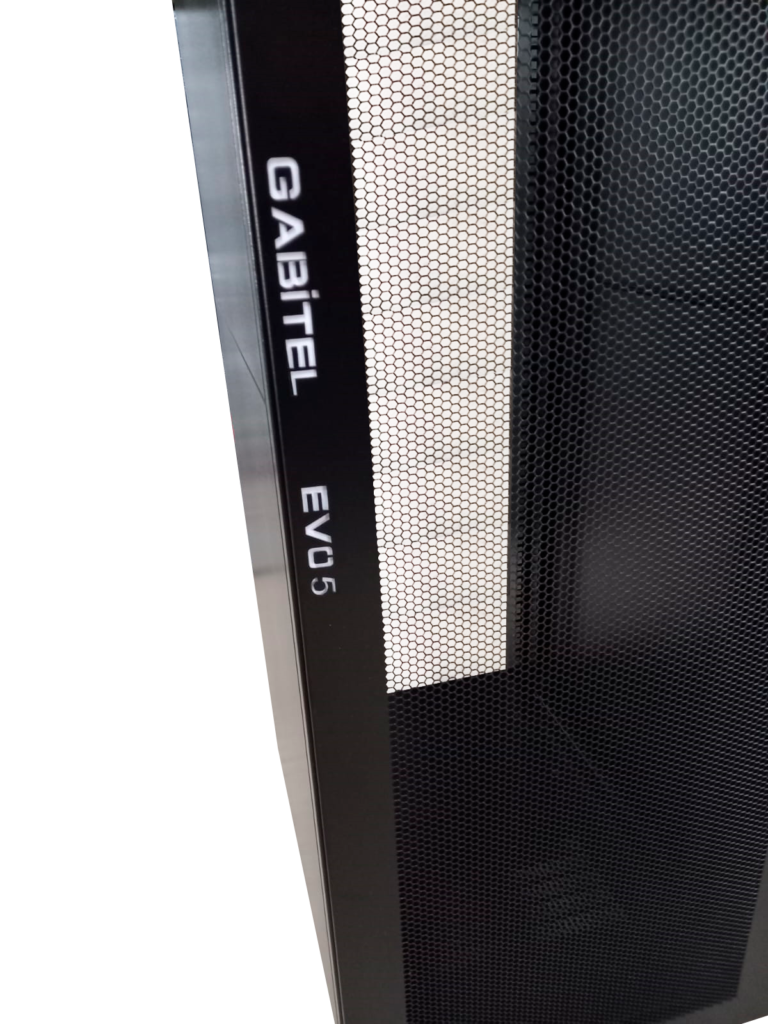

- Puerta delantera perforada
- Con cerradura de combinación

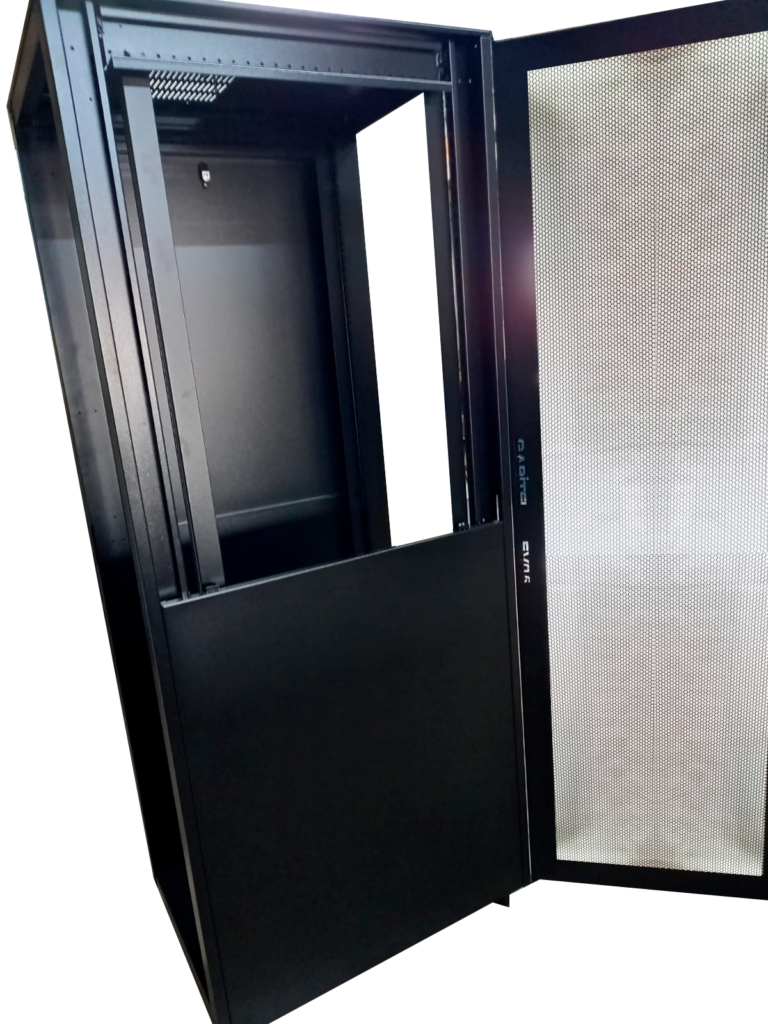

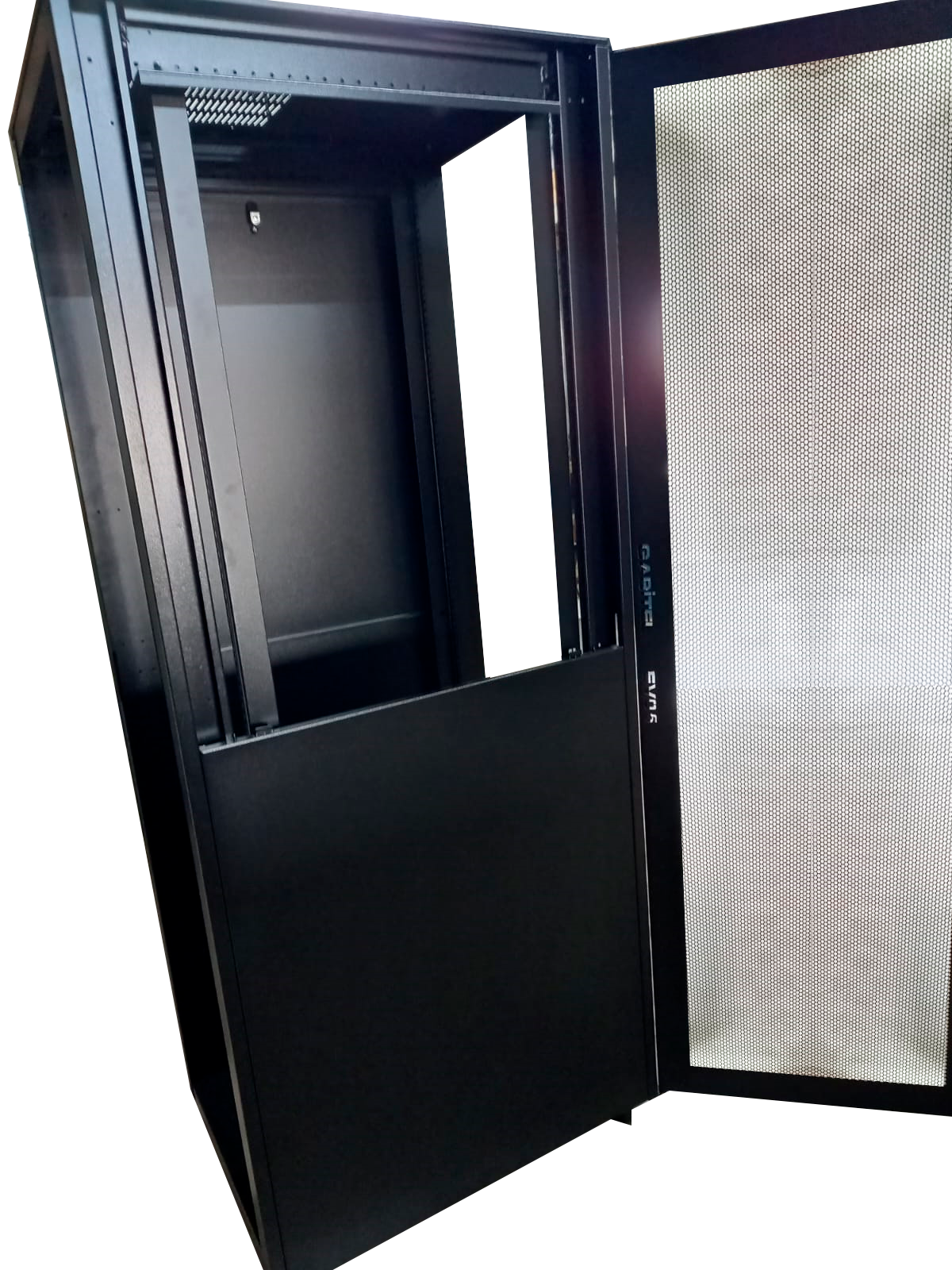

- Laterales ventilados, desmontables (2)

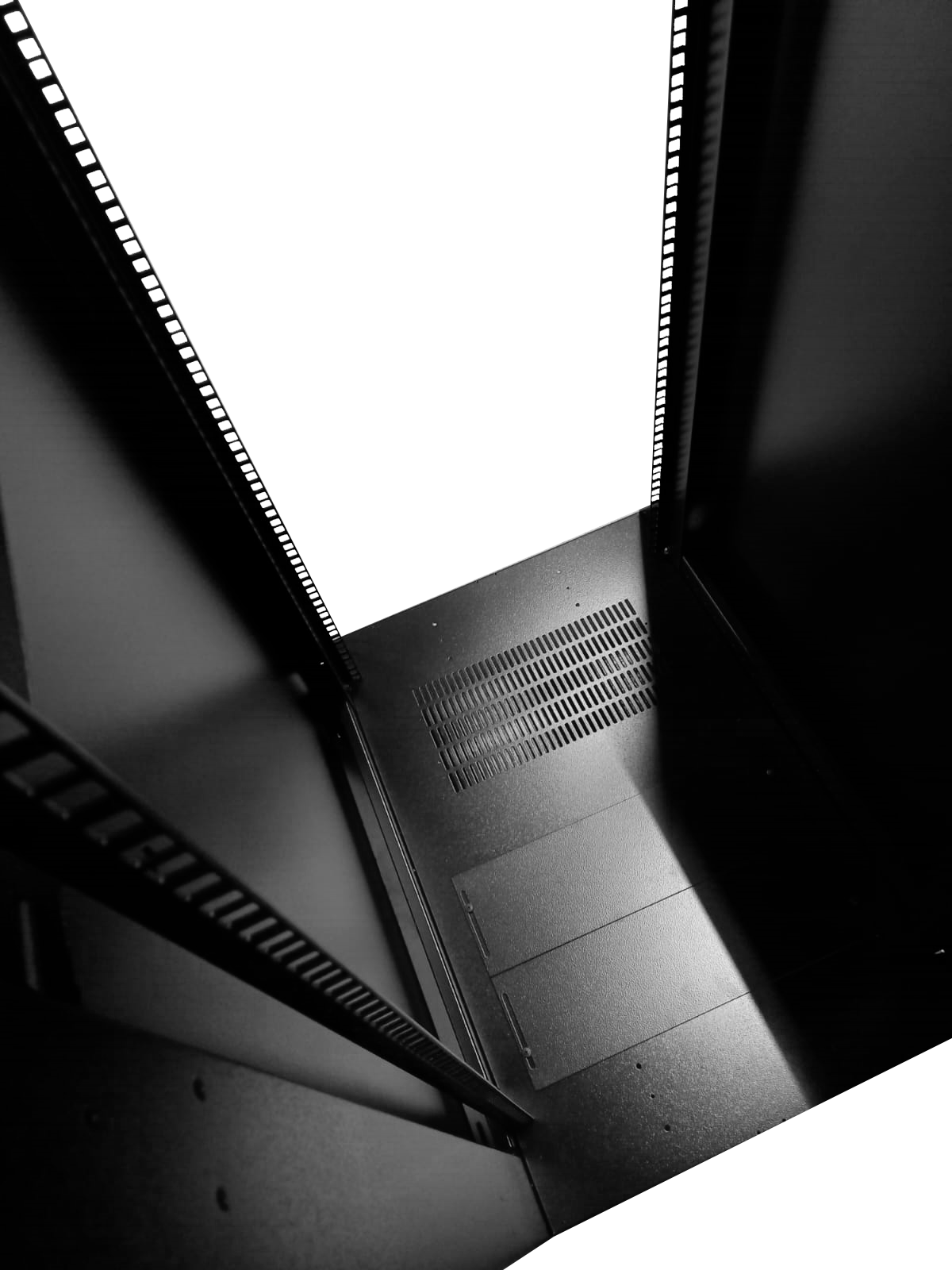

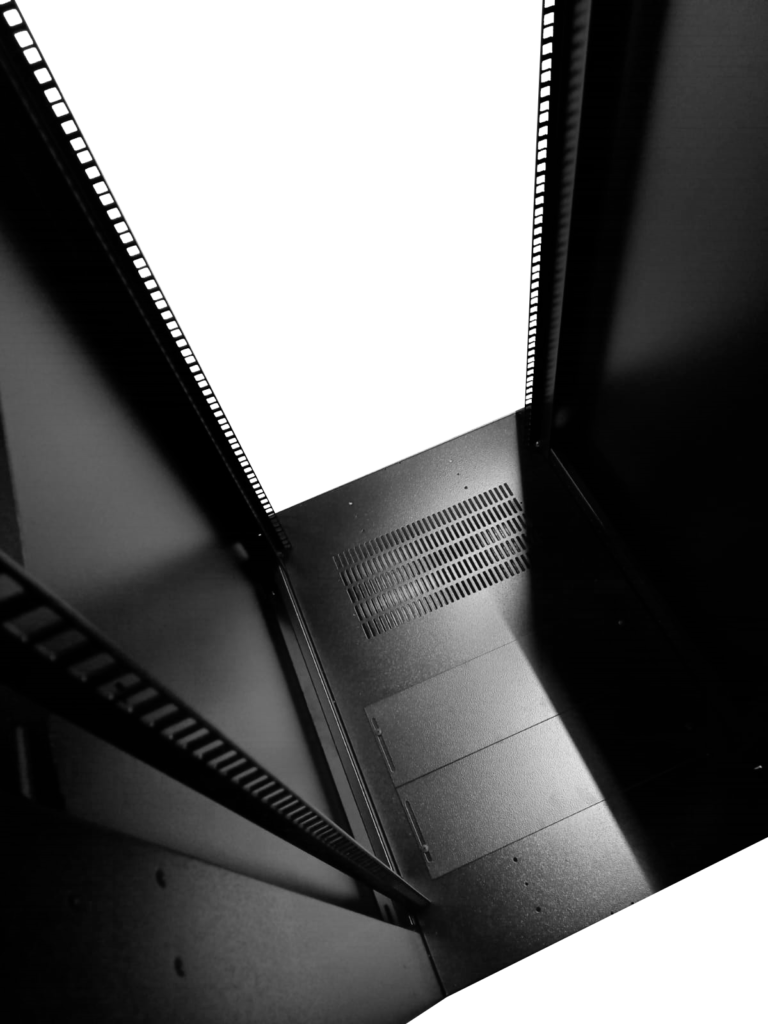

- Piso de aireación con acometida de cables)

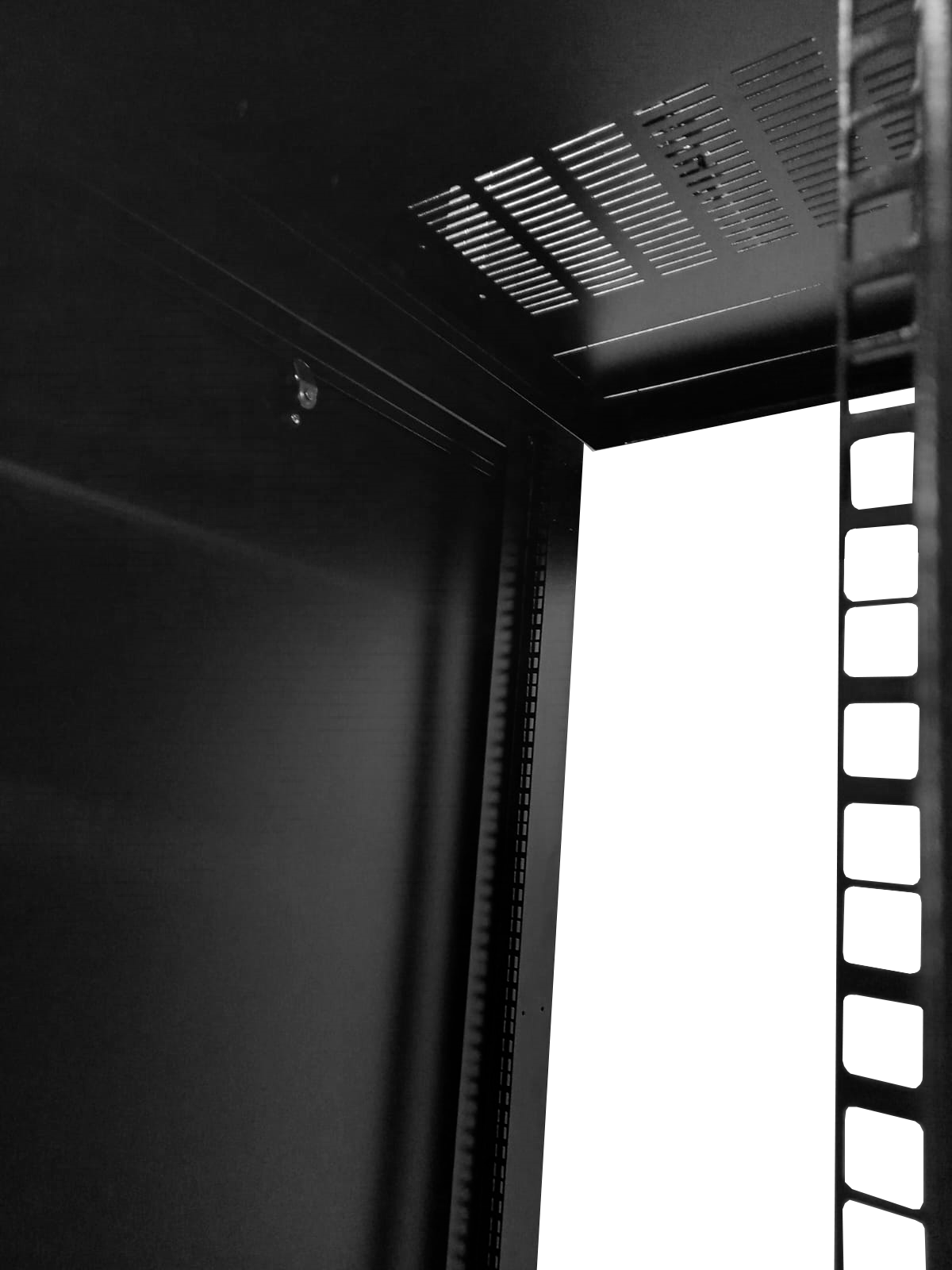

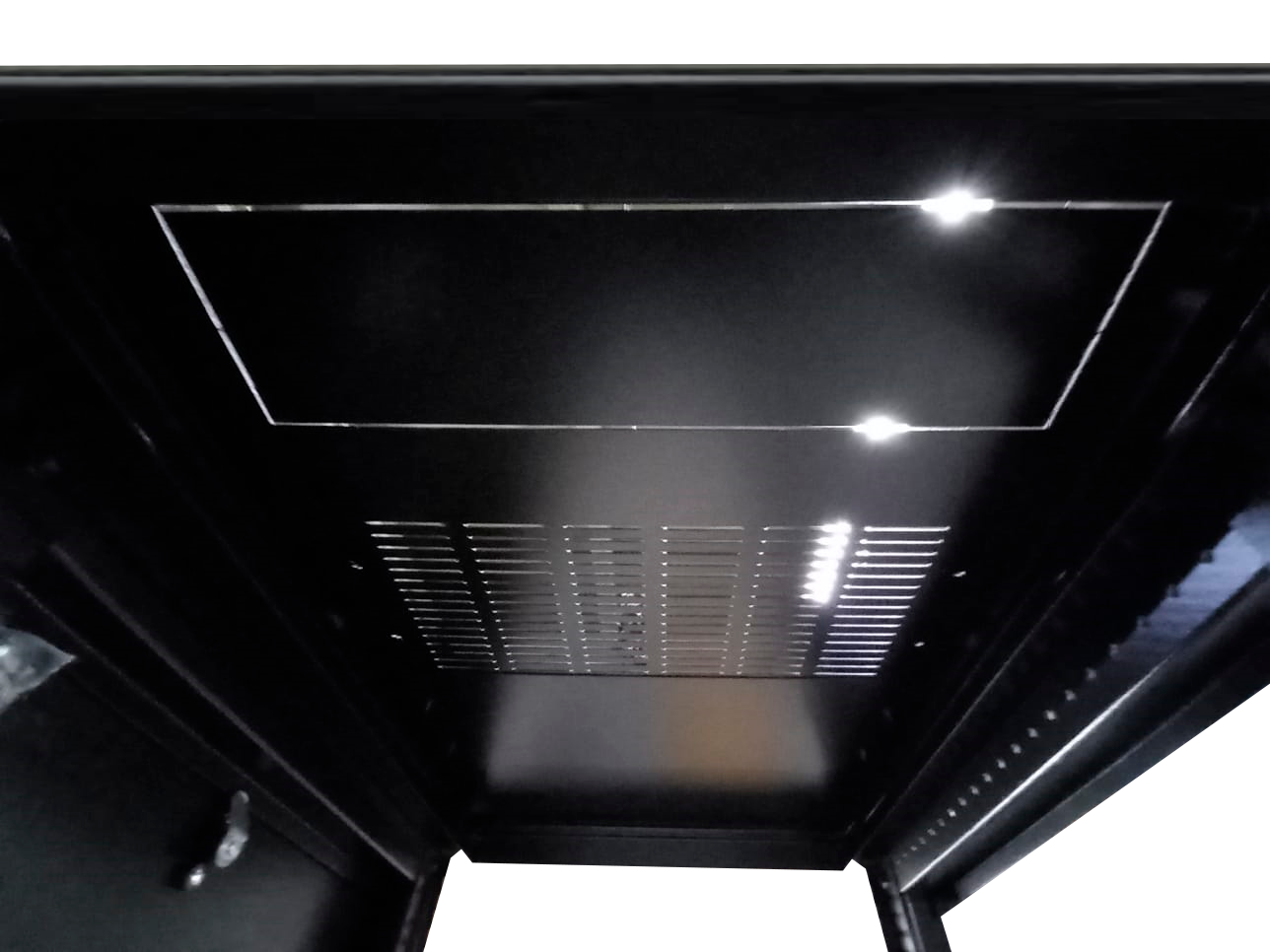

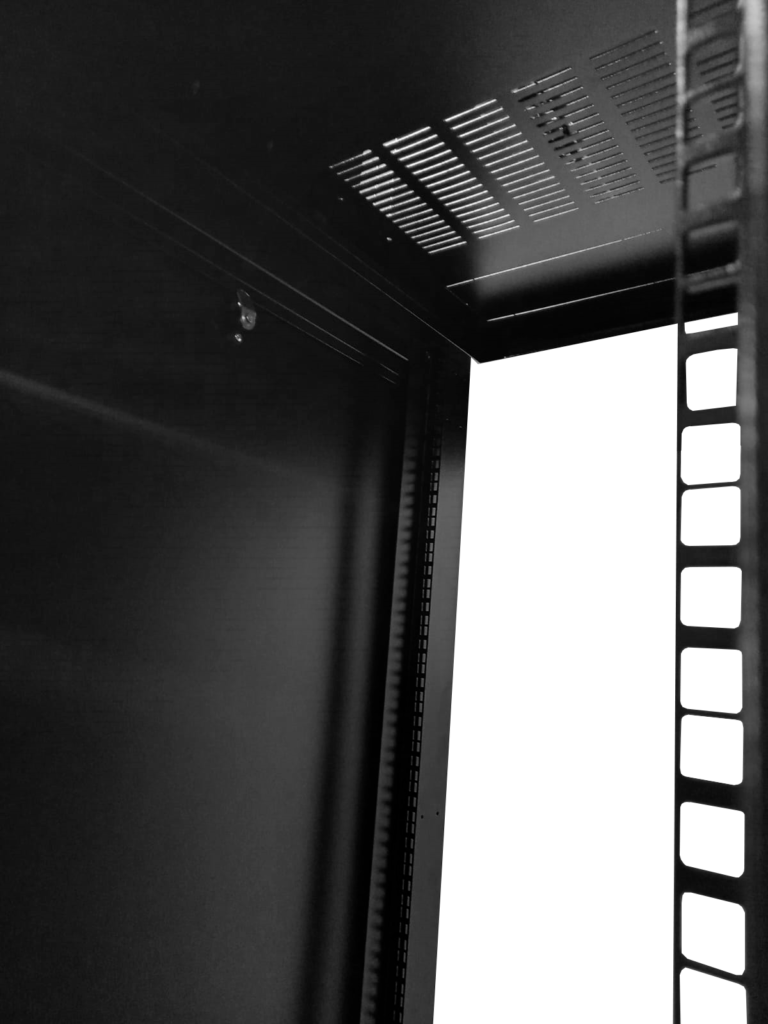

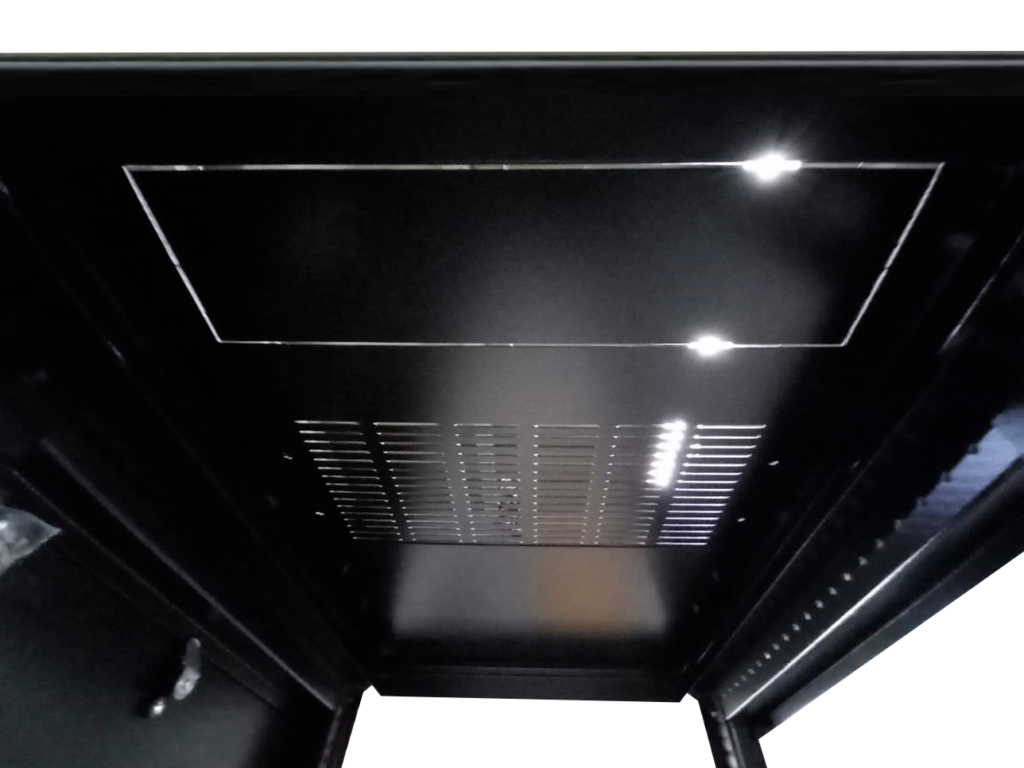

- Techo de aireación con acometida de cables
- Montantes a 19” (4)
- Pies de nivelación (4)
- Grupo de fijación (50) VA-M610
Materiales y terminación superficial:
- Estructura: Chapa de acero doble decapado
- Puerta delantera: Acero galvanizado
- Ventilación de puerta: 85% de superficie ventilada
- Patas de nivelación: de Nylon
- Pintura: Epoxi horneable
| ALTURA | PROF. | COLOR | ANCHO 600mm | ANCHO 700mm | ANCHO 800mm |
|---|---|---|---|---|---|
| Rack 15U | 600mm | B | R-E5-15U6B | R-E523-15U6B | R-E5W8-15U6B |
| N | R-E5-15U6N | R-E523-15U6N | R-E5W8-15U6N | ||
| 800mm | B | R-E5-15U8B | R-E523-15U8B | R-E5W8-15U8B | |
| N | R-E5-15U8N | R-E523-15U8N | R-E5W8-15U8N | ||
| 1000mm | B | R-E5-15U1B | R-E523-15U1B | R-E5W8-15U1B | |
| N | R-E5-15U1N | R-E523-15U1N | R-E5W8-15U1N | ||
| 1200mm | B | R-E5-15U12B | R-E523-15U12B | R-E5W8-15U12B | |
| N | R-E5-15U12N | R-E523-15U12N | R-E5W8-15U12N | ||
| Rack 20U | 600mm | B | R-E5-20U6B | R-E523-20U6B | R-E5W8-20U6B |
| N | R-E5-20U6N | R-E523-20U6N | R-E5W8-20U6N | ||
| 800mm | B | R-E5-20U8B | R-E523-20U8B | R-E5W8-20U8B | |
| N | R-E5-20U8N | R-E523-20U8N | R-E5W8-20U8N | ||
| 1000mm | B | R-E5-20U1B | R-E523-20U1B | R-E5W8-20U1B | |
| N | R-E5-20U1N | R-E523-20U1N | R-E5W8-20U1N | ||
| 1200mm | B | R-E5-20U12B | R-E523-20U12B | R-E5W8-20U12B | |
| N | R-E5-20U12N | R-E523-20U12N | R-E5W8-20U12N | ||
| Rack 31U | 600mm | B | R-E5-31U6B | R-E523-31U6B | R-E5W8-31U6B |
| N | R-E5-31U6N | R-E523-31U6N | R-E5W8-31U6N | ||
| 800mm | B | R-E5-31U8B | R-E523-31U8B | R-E5W8-31U8B | |
| N | R-E5-31U8N | R-E523-31U8N | R-E5W8-31U8N | ||
| 1000mm | B | R-E5-31U1B | R-E523-31U1B | R-E5W8-31U1B | |
| N | R-E5-31U1N | R-E523-31U1N | R-E5W8-31U1N | ||
| 1200mm | B | R-E5-31U12B | R-E523-31U12B | R-E5W8-31U12B | |
| N | R-E5-31U12N | R-E523-31U12N | R-E5W8-31U12N | ||
| Rack 40U | 600mm | B | R-E5-40U6B | R-E523-40U6B | R-E5W8-40U6B |
| N | R-E5-40U6N | R-E523-40U6N | R-E5W8-40U6N | ||
| 800mm | B | R-E5-40U8B | R-E523-40U8B | R-E5W8-40U8B | |
| N | R-E5-40U8N | R-E523-40U8N | R-E5W8-40U8N | ||
| 1000mm | B | R-E5-40U1B | R-E523-40U1B | R-E5W8-40U1B | |
| N | R-E5-40U1N | R-E523-40U1N | R-E5W8-40U1N | ||
| 1200mm | B | R-E5-40U12B | R-E523-40U12B | R-E5W8-40U12B |
| ALTURA | PROF. | COLOR | ANCHO 600mm | ANCHO 700mm | ANCHO 800mm |
|---|---|---|---|---|---|
| Rack 42U | 600mm | B | R-E5-42U6B | R-E523-42U6B | R-E5W8-42U6B |
| N | R-E5-42U6N | R-E523-42U6N | R-E5W8-42U6N | ||
| 800mm | B | R-E5-42U8B | R-E523-42U8B | R-E5W8-42U8B | |
| N | R-E5-42U8N | R-E523-42U8N | R-E5W8-42U8N | ||
| 1000mm | B | R-E5-42U1B | R-E523-42U1B | R-E5W8-42U1B | |
| N | R-E5-42U1N | R-E523-42U1N | R-E5W8-42U1N | ||
| 1200mm | B | R-E5-42U12B | R-E523-42U12B | R-E5W8-42U12B | |
| N | R-E5-42U12N | R-E523-42U12N | R-E5W8-42U12N | ||
| Rack 45U | 600mm | B | R-E5-45U6B | R-E523-45U6B | R-E5W8-45U6B |
| N | R-E5-45U6N | R-E523-45U6N | R-E5W8-45U6N | ||
| 800mm | B | R-E5-45U8B | R-E523-45U8B | R-E5W8-45U8B | |
| N | R-E5-45U8N | R-E523-45U8N | R-E5W8-45U8N | ||
| 1000mm | B | R-E5-45U1B | R-E523-45U1B | R-E5W8-45U1B | |
| N | R-E5-45U1N | R-E523-45U1N | R-E5W8-45U1N | ||
| 1200mm | B | R-E5-45U12B | R-E523-45U12B | R-E5W8-45U12B | |
| N | R-E5-45U12N | R-E523-45U12N | R-E5W8-45U12N | ||
| Rack 48U | 600mm | B | R-E5-48U6B | R-E523-48U6B | R-E5W8-48U6B |
| N | R-E5-48U6N | R-E523-48U6N | R-E5W8-48U6N | ||
| 800mm | B | R-E5-48U8B | R-E523-48U8B | R-E5W8-48U8B | |
| N | R-E5-48U8N | R-E523-48U8N | R-E5W8-48U8N | ||
| 1000mm | B | R-E5-48U1B | R-E523-48U1B | R-E5W8-48U1B | |
| N | R-E5-48U1N | R-E523-48U1N | R-E5W8-48U1N | ||
| 1200mm | B | R-E5-48U12B | R-E523-48U12B | R-E5W8-48U12B | |
| N | R-E5-48U12N | R-E523-48U12N | R-E5W8-48U12N |
